Button Punch Snap Lock Rollformer Model BPSL 20

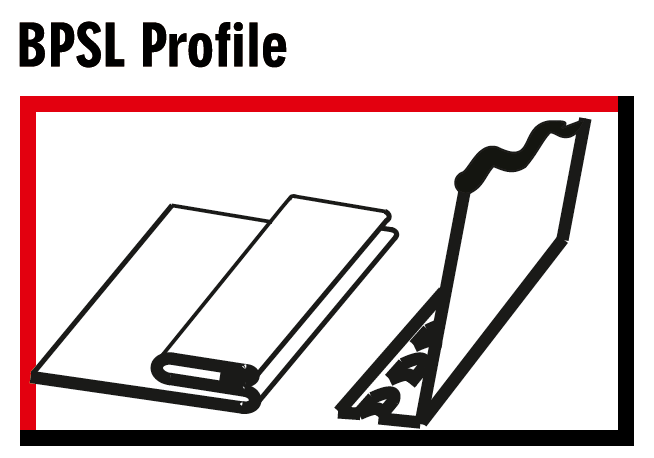

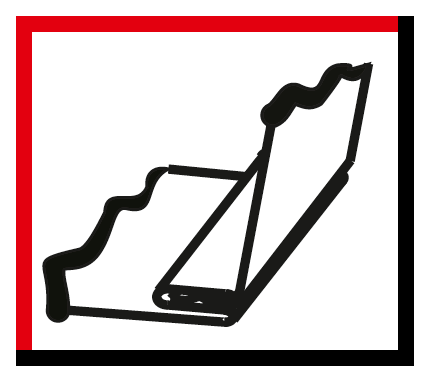

Introducing the DUCTFAB Button Punch Snap Lock (BPSL) Rollformer Machine – a sophisticated solution for joining sheet metal at right angles on straight runs. The BPSL joint, known for its efficiency and reduced labor requirements compared to the Pittsburgh lock, offers a secure and nearly unbreakable connection. This advanced joint technology enhances the overall fabrication process.

The DUCTFAB BPSL Rollformer Machine is engineered to bring efficiency and precision to your sheet metal fabrication processes. With its advanced snap lock mechanism and compatibility with flanging machines, it opens up possibilities for creating complex and customized duct shapes. Elevate your fabrication capabilities with the sophistication and reliability of the DUCTFAB Button Punch Snap Lock Rollformer Machine.

Brochure Button Punch Snap Lock Rollformer Model BPSL 20
Specification Product Details
  1. Efficient Joint Technology
    • BPSL is designed for joining sheet metal at right angles on straight runs, providing a more sophisticated joint than the traditional Pittsburgh lock.
    • Requires less labor while ensuring a tight and secure connection between the male and female sections.
  2. Snap Lock Mechanism
    • The male section of the joint snaps tightly into the female section, creating a robust joint that is almost unbreakable.
    • Enhances the overall strength and durability of the ductwork.
  3. Compatibility with Flanging Machine
    • When used in conjunction with a double-headed flanging machine, the BPSL enables the forming of round bends, expanding its application versatility.
    • Offers the capability to create intricate and customized duct shapes.
  4. Maximum Forming Capacity
    • The machine is capable of forming a maximum of 20 swg (1.00mm) sheet metal thickness, catering to a variety of fabrication requirements.
  5. Streamlined Fabrication Process
    • Provides a more efficient and streamlined fabrication process compared to traditional joints, optimizing workflow and reducing production time.
  6. Versatile Application
    • Suitable for a wide range of ductwork applications, offering adaptability to various sheet metal thicknesses and fabrication needs.
