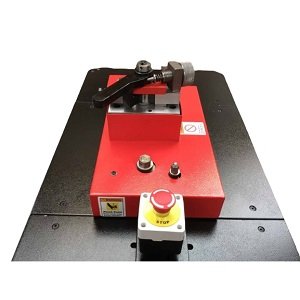

Pittsburgh Rollforming Machine Model RF 20

Introducing our Lock Forming Machine for Pittsburgh Lock – a "must-have" for every duct shop, whether big or small! The Pittsburgh Lock, also known as the 'Double' in India, is the globally recognized joint for creating strong and airtight duct-work by joining sheet metal at right angles on straight runs. Our Model RF-20 Pittsburgh Rollformer stands as an essential tool with its advanced features tailored to meet the specific requirements of duct fabrication.

The Lock Forming Machine RF-20 from DUCTFAB is the quintessential tool for duct shops seeking efficiency and precision in Pittsburgh Lock applications. With its advanced features, optional customization, and sturdy construction, this machine is a reliable solution for creating airtight and strong ducts. Elevate your duct fabrication capabilities with DUCTFAB's Lock Forming Machine RF-20.

Brochure RF 20

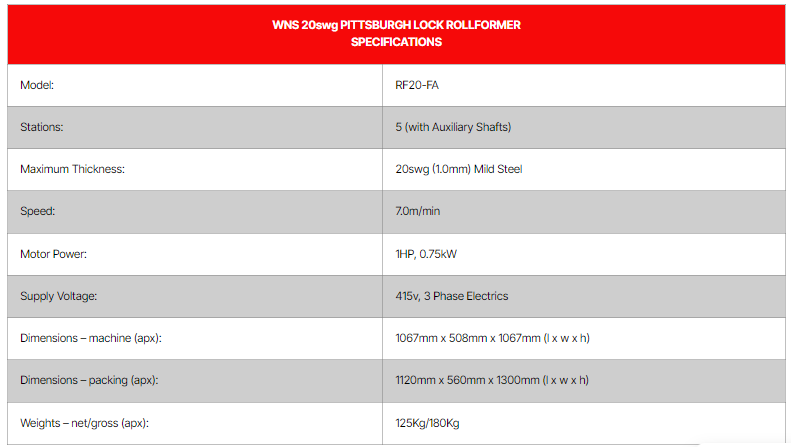

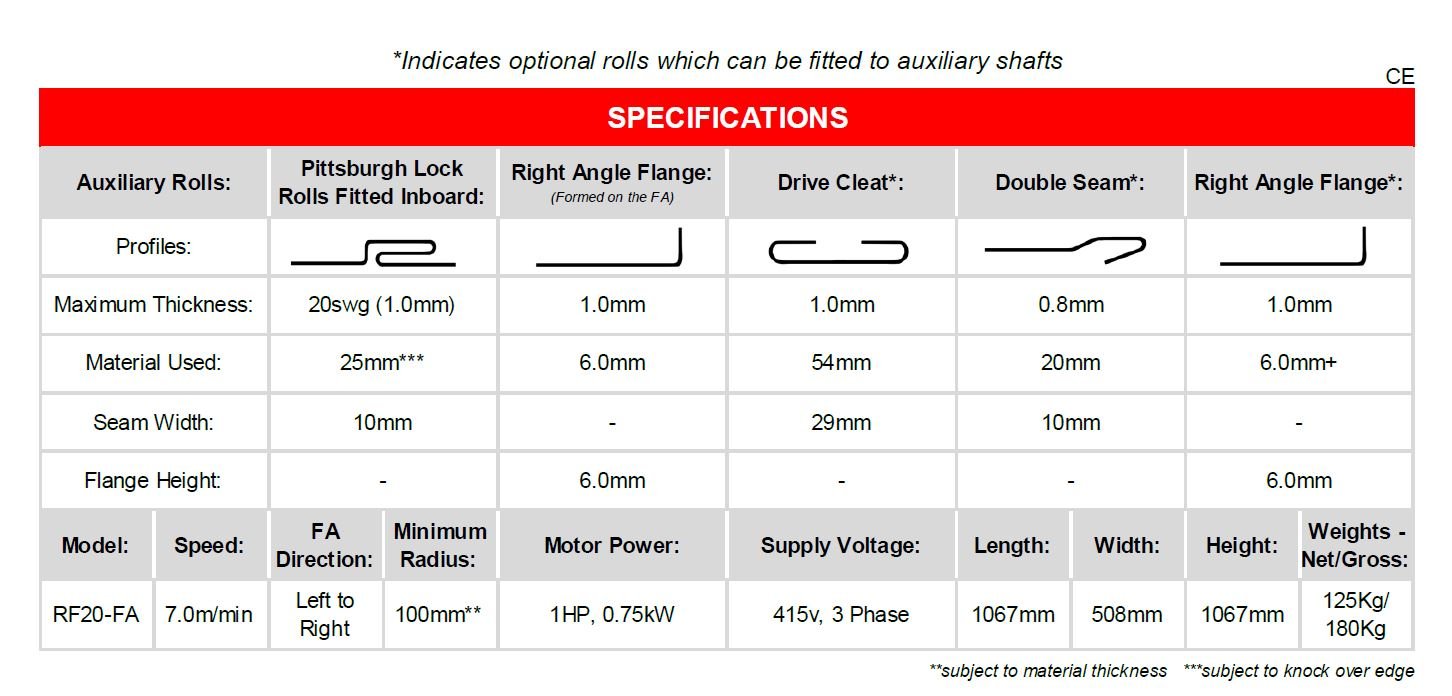

Specification Product Details Videos

Universal Joint for Ducts

The Pittsburgh Lock, or 'Double,' is the preferred joint for joining sheet metal at right angles, ensuring the creation of airtight and robust duct-work.

Optimized Forming Stations

The RF-20 Lock Forming Machine is equipped with 5 forming stations, providing precision and efficiency in the fabrication process.
With 2 forming positions, this machine offers flexibility for various sheet metal forming requirements.

Optional Rolls for Customization

Female Pittsburgh forming with inboard-mounted rolls ensures accurate and consistent joints.
Optional rolls like Double Seam, Right Angle Flange, or 'C' Cleat (Drive Cleat) can be fitted on the outboard side for versatile applications.

Flanging Attachment for Additional Functionality

An optional flanging attachment is available for forming right-angle edges on round or irregular curve edges.
Handy for fabricating fittings such as elbows, tee pieces, etc., adding versatility to the machine.

Sturdy Construction

The steel welded frame with powder coating ensures a robust and stable machine, providing durability and longevity.
Designed to withstand the demands of duct fabrication, enhancing overall stability during operation.

Maximum Forming Capacity

RF-20 is capable of forming a maximum of 1 mm (20g) sheet metal thickness, catering to a wide range of duct manufacturing needs.
