Rectangular Duct Line Ⅵ

The function of rectangular duct lines VI is basically the same as that of rectangular duct line V. It can automatically complete uncoiling, leveling, beading, notching and punching, Pittsburgh lock forming, TDF flange forming and angle iron flange forming. The maximum feeding speed of duct line VI is 16 m/min, and the length tolerance is ±0.5 mm.

Brochure Rectangular Duct Line Ⅵ

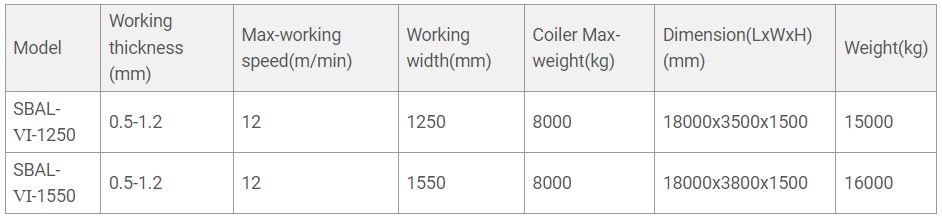

Specification Advantages

Computer controlled electronics and servo-driven feeding platform greatly improve the production precision and operation stability.
Compact in structure, this duct line occupies a small area, which is suitable for small and medium-sized factories.
The duct line VI features a TDF flange former and an angle iron flange former, which are easily interchangeable and easy to operate.
