Bending Rolls Manual & Motorised Operated Models: BR 1000, BR 1250 & PBR 1250

Introducing DUCTFAB's Bending Rolls, available in both hand-operated and motorized configurations to meet the diverse needs of sheet metal bending. Our Initial Pinch Bending Rolls are designed to efficiently curl sheet metal, providing a versatile and reliable solution for various applications.

Hand-Operated Bending Rolls
  • Equipped with a SLIP ROLL feature that allows material to slide out effortlessly once it is rolled.
  • Designed for ease of use and manual control, providing flexibility in small-scale bending operations.
  • Ideal for workshops or applications where manual operation is preferred.
Motorized Bending Rolls
  • Powered by a reduction gearbox drive, ensuring smooth and efficient operation.
  • Forward/reverse foot switch for easy control and precision during the bending process.
  • Motorized design enhances productivity, making it suitable for larger-scale and repetitive bending tasks.

DUCTFAB's Bending Rolls combine precision, durability, and ease of use to offer a reliable solution for sheet metal bending. Whether you choose the hand-operated version with SLIP ROLL for manual control or the motorized version for enhanced efficiency, our Bending Rolls are engineered to meet the demands of diverse bending tasks. Elevate your sheet metal bending capabilities with DUCTFAB's reliable and versatile Bending Rolls.

Brochure Bending Rolls

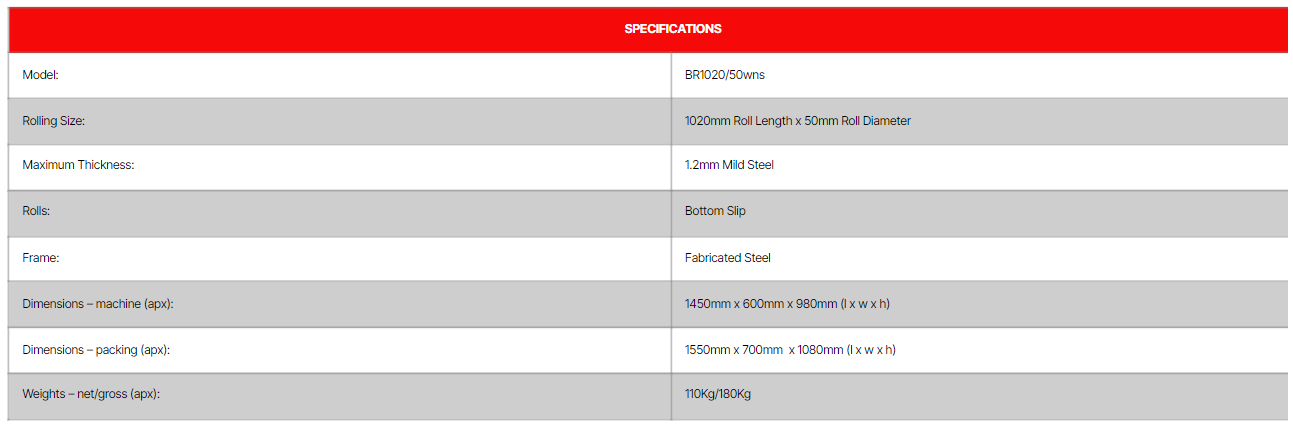

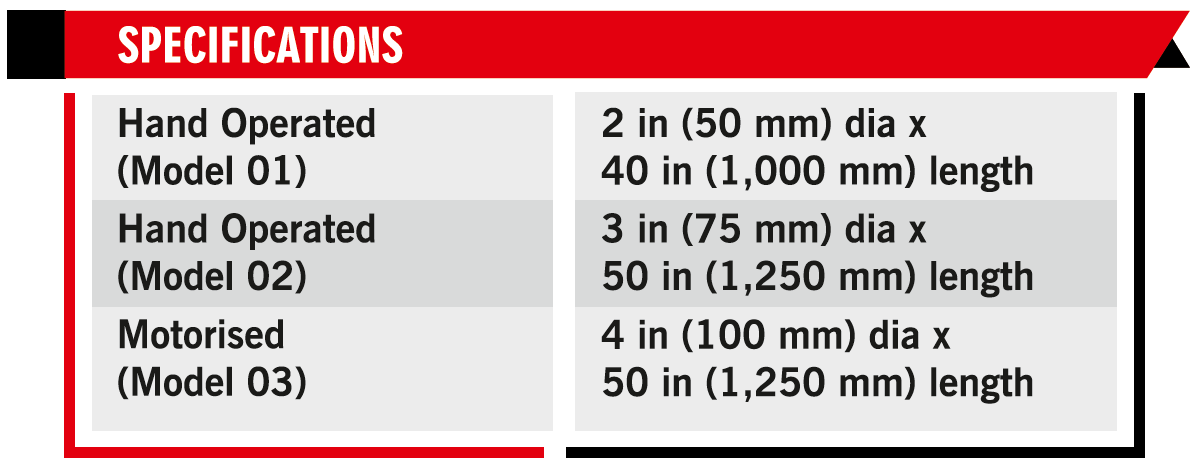

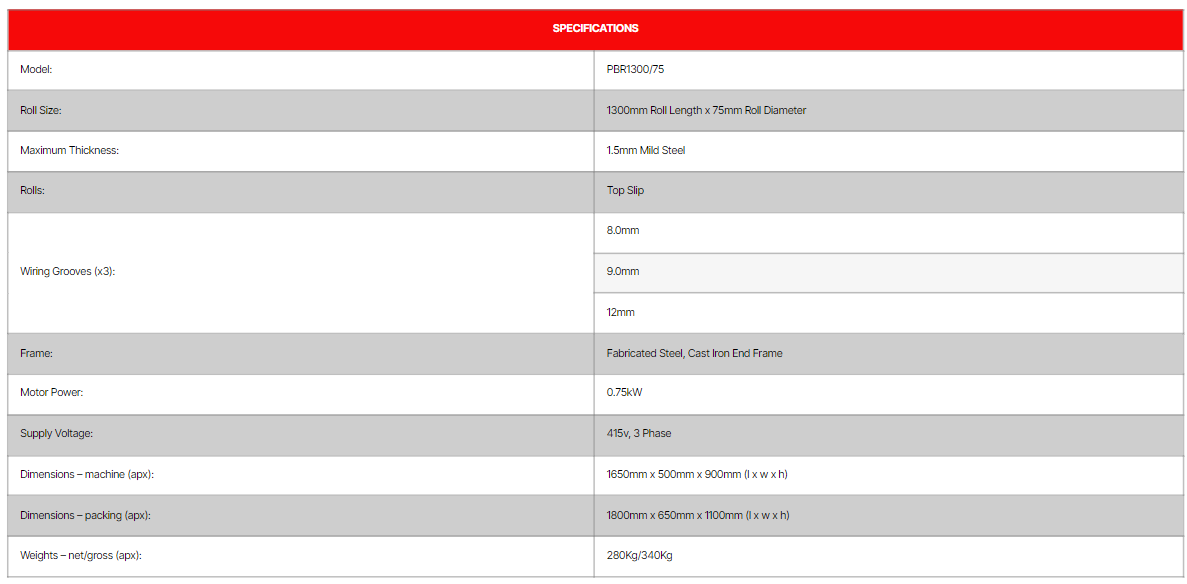

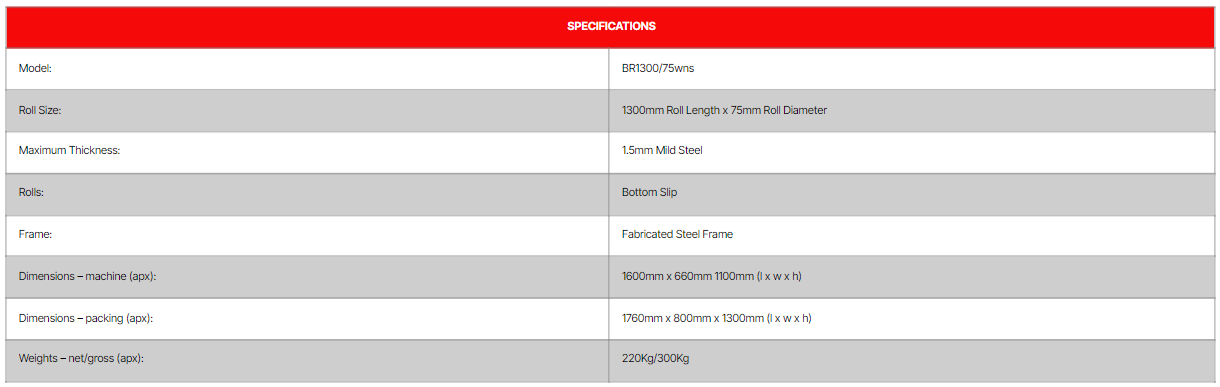

Specification Product Details
  1. Versatile Bending Capability
    • Suitable for curling sheet metal through rolling, accommodating a variety of bending applications.
  2. SLIP ROLL Feature (Hand-Operated)
    • Enables easy removal of material once it is rolled, enhancing user convenience.
  3. Efficient Motorized Operation
    • Motorized machines feature a reduction gearbox drive for consistent and efficient bending.
    • Forward/reverse foot switch facilitates easy control during the bending process.
  4. Durable Construction
    • Rolls are ground and hard chrome plated for extended life and durability.
    • Strong MS construction for the stand with powder coating ensures a long-lasting finish.
  5. Flexibility in Material Handling
    • Designed to handle various sheet metal thicknesses, providing flexibility in material selection.
  6. Application Versatility
    • Suited for a wide range of industries and applications, from small workshops to larger manufacturing environments.
